Ford Expedition Towing Capacity

2026 Ford Expedition Powertrain Excellence

The 2026 Ford Expedition’s towing capability starts with one of the most capable powertrains in the full-size SUV segment. The 3.5-liter twin-turbocharged EcoBoost V6 is the foundation — a proven architecture that combines peak torque at low RPM (critical for trailer launches and uphill grades) with fuel economy that punches above its weight for a vehicle of this size and capability.

Twin-Turbocharged EcoBoost Engine Specifications

The standard 3.5L EcoBoost V6 produces 380 horsepower and 470 lb-ft of torque — numbers that give the Expedition confident towing authority across its full rating range. The high-output version, available on upper trims and towing-focused configurations, delivers 440 horsepower and 510 lb-ft of torque, providing additional reserve power when you’re near the 9,300-pound ceiling on a steep Missouri grade. Despite this output, the Expedition returns 17 MPG city and 23 MPG highway (2WD) — an efficient figure for a full-size SUV with this much towing range. For a full MPG breakdown, see our 2026 Ford Expedition MPG guide.

Advanced 10-Speed SelectShift Transmission

The EcoBoost engine pairs with Ford’s 10-speed SelectShift automatic transmission — a wide-ratio gearbox that keeps the engine in its optimal torque band whether you’re crawling off the launch ramp at idle or cruising at highway speed with a loaded trailer. The transmission includes a dedicated Tow/Haul mode that adjusts shift logic to reduce gear hunting on grades, holding lower gears longer to maintain engine braking on descents and provide better responsiveness when passing with a heavy load behind you.

Performance Ratings Across Trim Levels

The 2026 Expedition’s Terrain Management System offers seven drive modes — Normal, Eco, Sport, Tow/Haul, Deep Sand/Snow, Slippery, and Mud/Ruts — allowing drivers to optimize throttle response, transmission shift logic, and stability control calibration for their specific towing environment. Whether you’re backing a boat trailer down a wet boat ramp or pulling a horse trailer on a gravel farm road, the right mode keeps power delivery smooth and predictable.

2026 Ford Expedition Towing Capacity by Configuration

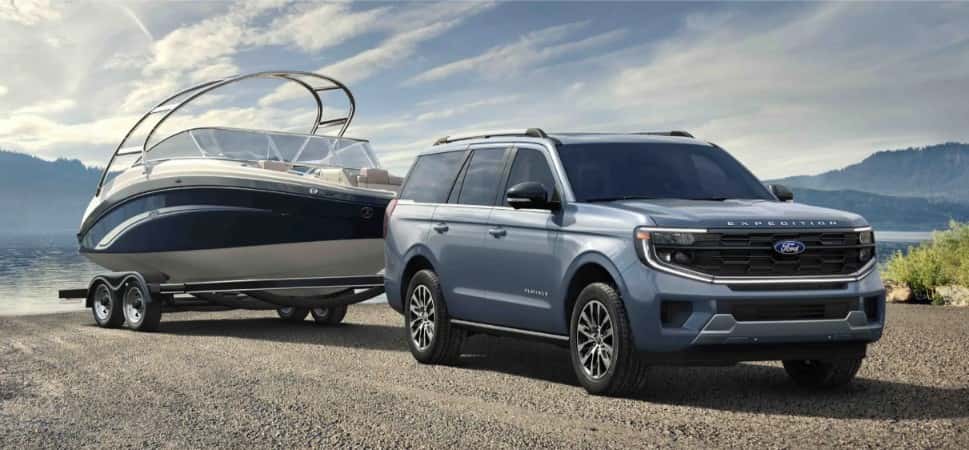

Towing capacity on the 2026 Expedition varies by drivetrain and body configuration. The 4×2 (rear-wheel drive) standard Expedition reaches the highest rating at 9,300 pounds with the Heavy-Duty Trailer Tow Package — enough to tow a fully loaded pontoon boat, a mid-size travel trailer, or multiple ATVs on an enclosed hauler. The 4×4 model gives up just 100 pounds (9,200 lbs) for the added year-round traction capability. Both Expedition MAX configurations — which add length for more interior cargo space — are rated at 9,000 pounds.

For context: the Honda Pilot and Toyota Highlander max out at 5,000 lbs of towing. The Expedition’s 9,300-lb ceiling puts it in a fundamentally different capability category — closer to a pickup truck than a crossover when it comes to real hauling tasks. Call Rob Sight Ford at 816-895-6901 and our team can help you identify which configuration matches your specific trailer weight and use case.

Heavy-Duty Trailer Tow Package Features

The Heavy-Duty Trailer Tow Package is what unlocks the 2026 Expedition’s full 9,300-pound towing rating. It’s not just a receiver hitch — it’s a comprehensive upgrade that includes a larger cooler for the transmission, an upgraded rear axle ratio, and a suite of towing-specific technologies that make the difference between a stressful haul and a confident one.

Pro Trailer Backup Assist 2.0 Technology

Backing a trailer into a tight spot — a boat slip, a campsite, a narrow barn entrance — is one of the most stressful towing tasks for drivers of any experience level. Pro Trailer Backup Assist 2.0 eliminates most of that stress. The driver steers the trailer by rotating a small dial on the dashboard: turn the dial left and the trailer goes left, turn it right and the trailer goes right. The Expedition’s steering system handles all the counterintuitive wheel inputs automatically. It’s available on all trim levels with the tow package and works with any trailer equipped with a Ford-compatible sensor.

Trailer Sway Control and Enhanced Stability

Trailer sway — the side-to-side oscillation that can develop at highway speeds, in crosswinds, or when a passing semi creates a pressure wave — is the most dangerous towing scenario most drivers will ever encounter. The Expedition’s Trailer Sway Control integrates with the vehicle’s electronic stability system to detect sway onset early and respond by selectively applying individual wheel brakes and reducing engine torque to straighten the combination before the situation escalates. The system works automatically and transparently — the driver typically feels a brief correction rather than a dangerous excursion.

360-Degree Camera with Trailer Reverse Guidance

The Heavy-Duty Trailer Tow Package includes a 360-degree camera system with dedicated trailer reverse guidance view — giving the driver a bird’s-eye perspective of the vehicle and trailer during reversing maneuvers. Combined with the integrated trailer brake controller that coordinates stopping between the Expedition and a trailer with electric brakes, the complete package addresses every phase of a towing session from hookup to unhitch.

Smart Towing Technologies and Safety Features

The 2026 Expedition’s Ford Co-Pilot360 safety suite is designed to function while towing — not just in normal driving. Several systems are specifically calibrated to account for the added length, weight, and dynamics of a trailer combination.

Together, these systems give the 2026 Expedition a 5-star NHTSA overall safety rating and make it one of the most comprehensively equipped tow vehicles in its class. Kansas City drivers who regularly tow on I-70, I-35, or US-169 will appreciate how seamlessly these technologies work in background without requiring driver input or adjustment.

Cargo Space and Payload Capabilities

Towing capacity is only part of the Expedition’s hauling story. The 2026 model’s interior cargo volume — in both standard and MAX configurations — gives it the flexibility to carry passengers and gear simultaneously, or to fold down and carry full loads when the situation demands it.

Standard Expedition Storage Dimensions

The standard 2026 Expedition measures 210 inches in overall length and provides 104.6 cubic feet of cargo space behind the front row — enough for a full weekend of camping gear, sports equipment, or work tools. Behind the second row (with all seats up), there’s 63.6 cubic feet, and even with all three rows occupied, 20.9 cubic feet of space remains behind the third row.

Expedition MAX Extended Cargo Options

The Expedition MAX adds approximately 12 inches of overall length (221.9 inches total) and expands every cargo measurement meaningfully. Behind the front row, 121.5 cubic feet is available. Behind the second row, 79.6 cubic feet. And behind the third row — where the standard model offers just under 21 cubic feet — the MAX delivers 36 cubic feet, making it the right choice for large families who need both full seating capacity and daily cargo access.

Payload Capacity and Flexible Loading

The 2026 Expedition’s maximum payload capacity is 1,863 pounds — the combined weight of passengers, cargo, and any tongue weight from a trailer hitch. The interior seats up to 8 passengers across three rows (7 in bucket-seat configurations) with adjustable head restraints and PowerFold third-row seats that collapse flat with the touch of a button for instant cargo conversion.

See the 2026 Ford Expedition at Rob Sight Ford in Kansas City

The 2026 Ford Expedition is the full-size SUV that takes towing seriously — with a class-leading 9,300-pound rating, a twin-turbocharged EcoBoost V6, and a suite of smart towing technologies that make every haul safer and more confident. Whether you’re pulling a boat, a horse trailer, a camper, or a work trailer across Kansas City and beyond, the Expedition has the power, the tools, and the space to handle it.
